Dispenser Pan Fittings and Accessories

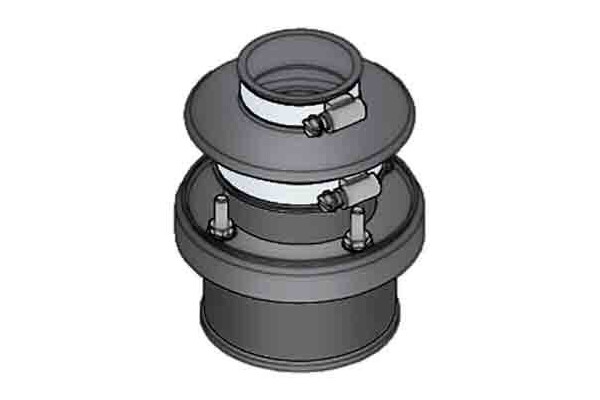

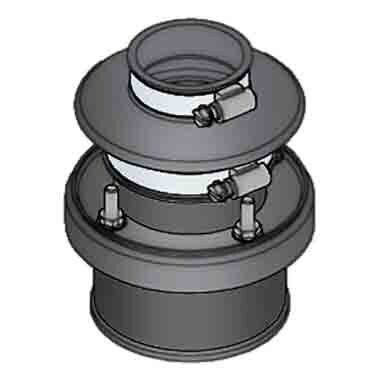

FlexWorks™ Dispenser Pan fittings are installed in the bottom of FlexWorks Dispenser Pans to accommodate Pipe and Flex Connector Entries. "The FIT-3530 and FIT-4530 are used to isolate and contain Flex Connectors."

Ordering Information
Technical Information

Ordering Information

Ordering Specifications - Dispenser Pan Fittings and Accessories

Model	Application	Nominal Boot I.D.		Hole Saw Required	Weight
Model	Application	in.	cm	Hole Saw Required	lbs.	kg
PEF-3520R	Pan Entry Fitting, 2" (5 cm) FRP Pipe Entry	2-3/8	6	3" (8 cm)	2.5	1
PEF-3515R	Pan Entry Fitting, 1.5" (4 cm) Pipe Entry	2	5	3" (8 cm)	2.5	1
PEF-3515X	Pan Entry Fitting, 1.5" (4 cm) Flex Connector (Hex Seal)	2 (Hex)	5	3" (8 cm)	2.5	1
FIT-3530	Flexible Isolation Jacket, 30" (76 cm) Long x 3.5" (9 cm) I.D.				2	1
ITR-3015	Isolation Tube Reducer, 3" (7.62 cm) x .5" (1.27 cm)				1	.5
ITR-3020	Isolation Tube Reducer, 3" (7.62 cm) x 2" (5.08 cm)				1	.5

Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.

Submit Enquiry

Submit a product Enquiry / Quote to Liquip customer service

Save as Wishlist

Save as Wishlist - handy function for account holders

Send to a Friend

Send you selection of products to a friend via a convenient email link

Image	Item	Description	Add Item into Enquiry Cart
	FIT-3530	Flexible Isolation Jacket, 30" (76 cm) Long x 3.5" (9 cm) I.D.
	ITR-3015	Isolation Tube Reducer, 3" (7.62 cm) x .5" (1.27 cm)
	ITR-3020	Isolation Tube Reducer, 3" (7.62 cm) x 2" (5.08 cm)
	PEF-3515R	Pan Entry Fitting, 1.5" (4 cm) Pipe Entry
	PEF-3515X	Pan Entry Fitting, 1.5" (4 cm) Flex Connector (Hex Seal)
	PEF-3520R	Pan Entry Fitting, 2" (5 cm) FRP Pipe Entry
