One-Piece Polyethylene Dispenser Sumps

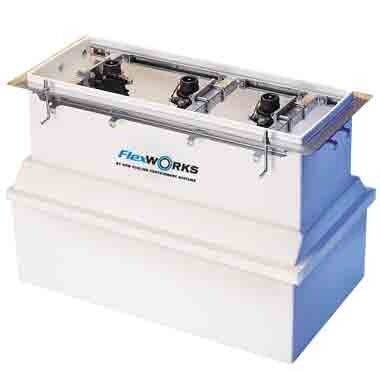

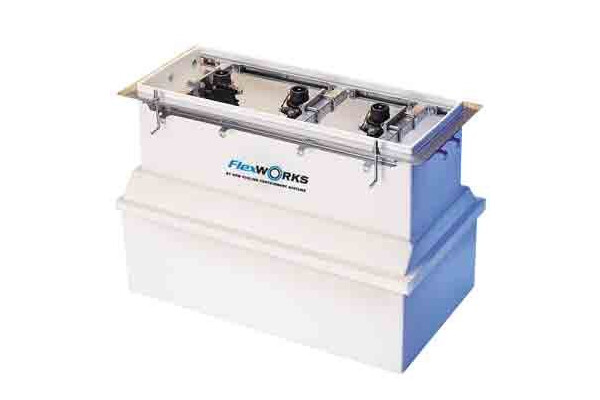

FlexWorks™ Dispenser Sumps are installed beneath fuel dispensers to provide access to and secondary containment of dispenser plumbing, emergency shear valves, and underground piping connections. Stabilizer Bar Kits are installed in FlexWorks Dispenser Sumps to provide reliable support for boss-mounted emergency shear valves.
Multiple Models – ensure a custom fit.
Structural Reinforcing on Large MPD Models – prevents sump deformation from backfill and high water table forces.
Light Color – preserves rigidity in sunlight before backfill and provides maximum visibility after installation.
Full Perimeter Liquid Collection Channel – facilitates quick leak detection and allows flexibility in locating leak sensors.
Integral Rain Lip – protrudes into the dispenser frame to prevent surface water entry.
Easy Installation – field height adjustment capability and large pipe entry area ensure installation flexibility.
Many Are Available in a Conduitless Model – eliminates conduit entry fittings and prevents a notorious leak point inside dispenser sumps.
-
Ordering Information
Ordering Specifications - One-Piece Polyethylene Dispenser Sumps
Sump Model # A B C D E Weight in. cm in. cm in. cm in. cm in. cm lbs. kg DS-1036 14 36 10 25 40 102 36 91 38 97 65 65 DS-1117F** 14.5 37 10.5 27 20.5 52 16.5 42 18.5 47 32 15 DS-1120 15 38 11 28 24 61 20 51 25 64 33 15 DS-1123 15 38 11 28 27 69 23 58 25 64 33 15 DS-1123B 18.5 47 11 28 27 69 23 58 25 64 33 15 DS-1123F** 15 38 11 28 27 69 23 58 25 64 33 15 DS-1229 15.5 39 11.5 29 33 84 29 74 31 79 49 22 DS-1242 15.5 38 11.5 29 46 117 42 107 44 112 84 38 DS-1543A 19 48 15 38 43 109 39 99 41 104 84 38 DS-1630 20 51 16 41 34 86 30 76 32 81 52 23 DS-1630B 20 51 16 41 34 86 30 76 32 81 52 23 DS-1642 20 51 16 41 46 117 42 107 44 112 84 38 DS-1836 21.5 55 17.5 44 40.5 103 36.5 93 39 99 70 32 DS-1928 18 46 14.8 38 30 76 26 66 28.5 72 50 23 DS-1741 21 53 17 43 44.7 114 40.6 103 42.6 108 80 36 * Refer to FlexWorks Dispenser Sump Selection Charts below to select sumps for particular dispensers. ** Flush mount model supplied without rain lip due to dispenser frame clearance limitations; Frame gasket included. Anchor bolts provided, Stabilizer Bar Kits ordered separately; One kit required for each emergency and vapor shear valve.
Dimensions
FlexWorks Dispenser Sump Selection Guide
Gilbarco
Dispenser Manufacturer & Model Dispenser Footprint Dimensions FlexWorks One-Piece Polyethylene Sump FlexWorks Wide-Access Polyethylene Sump FlexWorks One-Piece Polyethylene Pan FlexWorks One-Piece Fiberglass Sump FlexWorks Wide-Access Fiberglass Sump Stabilizer Bar Kit Gilbarco in. cm Commercial 625, 650, 684 Series (21" / 53 cm Frame) 15-11/16" x 21" 40 x 53 DS-1117F DSW-1117F DP-1117F DSF-1117F SBK-1100J Salesmaker-2 Series (21" / 53 cm Frame) 15-11/16" x 21" 40 x 53 DS-1117F DSW-1117F DP-1117F DSF-1117F SBK-1100J Highline 11B Series (21" / 53 cm Frame) 15-11/16" x 21" 40 x 53 DS-1117F DSW-1117F DSF-1117F SBK-1100J Highline 111B Series (27" / 69 cm Frame) 15-11/16" x 27" 40 x 53 DS-1123F DSW-1123F DP-1123F DSF-1123F SBK-1100J Trimline 251, 252, 261, 262 (27" / 69 cm Frame) 15-11/16" x 27" 40 x 69 DS-1123F DSW-1123F DP-1123F DSF-1123F SBK-1100J Trimline 154, 164, 251, 262 (27" / 69 cm Frame) 15-11/16" x 21" 40 x 69 DS-1117F DSW-1117F DSF-1117F SBK-1100J Commercial 650 Series (27" / 69 cm Frame) 15-11/16" x 27" 40 x 69 DS-1123F DSW-1123F DP-1123F DSF-1123F SBK-1100J Highline Salesmaker Series 15-11/16" x 21" 40 x 69 DS-1117F DSW-1117F DP-1117F DSF-1117F SBK-1100J Highline Salesmaker Series (27" / 69 cm Frame) 15-11/16" x 27" 40 x 69 DS-1123F DSW-1123F DP-1123F DSF-1123F SBK-1100J Salesmaker-4 Series (27" / 69 cm Frame) 15-11/16" x 27" 40 x 69 DS-1123F DSW-1123F DP-1123F DSF-1123F SBK-1100J Legacy Series 15-11/16" x 27" 40 x 69 DS-1123F DSW-1123F DP-1123F DSF-1123F SBK-1100J Encore Series 23-1/2" x 40-9/16" 60 x 103 DS-1836 DSW-1836 DSW-1836CL DP-1836 FDS-4021 DSF-1836 DSF-1836C SBK-1800* Advantage (36" / 91 cm Frame Models) 21-1/2" x 36" 55 x 91 DS-1630 DSW-1630 DP-1630 DSF-1630 SBK-1600 Quad or Dual Blender X + O (36" / 91 cm) Advantage (48" / 122 cm Frame Models) 21-1/2" x 48" 55 x 122 DS-1642 DSW-1642 DSF-1642 SBK-1600* Blender Six-Hose Blender Single-Hose Blender X + O (48" / 122 cm) or X + 1 (48" / 122 cm) MPD-1, MPD-2, MPD-3 16" x 48" 41 x 122 DS-1036 SBK-1000J MPD Fixed Blender 16" x 48" 41 x 122 DS-1036 SBK-1000J * For FDS-4721 Models, use Stabilizer Bar SBO-0300.
Bennett
Dispenser Manufacturer & Model Dispenser Footprint Dimensions FlexWorks One-Piece Polyethylene Sump FlexWorks Wide-Access Polyethylene Sump FlexWorks One-Piece Polyethylene Pan FlexWorks One-Piece Fiberglass Sump FlexWorks Wide-Access Fiberglass Sump Stabilizer Bar Kit Bennett in. cm Bennett Pacific 19-1/2" x 43-1/2" 49 x 110 DS-1543A SBK-1500 Bennett 3000 Series 20" x 30" 51 x 76 DS-1123B SBK-1100J PD McLaren
Dispenser Manufacturer & Model Dispenser Footprint Dimensions FlexWorks One-Piece Polyethylene Sump FlexWorks Wide-Access Polyethylene Sump FlexWorks One-Piece Polyethylene Pan FlexWorks One-Piece Fiberglass Sump FlexWorks Wide-Access Fiberglass Sump Stabilizer Bar Kit PD McLaren in. cm RDR HSx (Single Product, Single Hose) 21" x 17.75" 53 x 45 DSW-1922 DSF-1922 SBK-1900 RDR HSx-D1 (Single Product, Dual Hose) 21" x 17.75" 53 x 45 DSW-1922 DSF-1922 SBK-1900 RDR HSx-D2 (Dual Product, Dual Hose) 21" x 17.75" 53 x 45 DSW-1922 DSF-1922 SBK-1900 RDR HSx-SAT (Master Unit and Satellites) 21" x 17.75" 53 x 45 DSW-1922 DSF-1922 SBK-1900 RDR HSx-X2 (Single Product, Dual Hose, One at a Time) 21" x 17.75" 53 x 45 DSW-1922 DSF-1922 SBK-1900 Gasboy
Dispenser Manufacturer & Model Dispenser Footprint Dimensions FlexWorks One-Piece Polyethylene Sump FlexWorks Wide-Access Polyethylene Sump FlexWorks One-Piece Polyethylene Pan FlexWorks One-Piece Fiberglass Sump FlexWorks Wide-Access Fiberglass Sump Stabilizer Bar Kit Gasboy in. cm 0215A, 216A (197/8" Frame / 50.5 mm) 17-1/4" x 19-7/8" 49 x 50.5 DS-1117F DSW-1117F DP-1117F DSF-1117F SBK-1100J 52 and 53 Series 17" x 19-7/8" 44 x 50.5 DS-1117F DSW-1117F DP-1117F DSF-1117F SBK-1100J 8700, 8800, 9100, 9800 Series 17-1/4" x 25" 44 x 63.5 DS-1120 SBK-1100J 25" Frame 63.5 mm 17-1/4" x 25" 44 x 63.5 8700, 8800, 9100, 9800 Series (28-1⁄4" Frame / 72 mm) 17-1/4" x 28" 44 x 71 DS-1123 DSW-1123 DP-1123 DSF-1123F SBK-1100J 9850A 15-11/16" x 21" 40 x 69 DS-1120 DSW-1120 DSF-1120 SBK-1100J * Stabilizer bar is installed widthwise in dispenser sump
Dresser / Wayne
Dispenser Manufacturer & Model Dispenser Footprint Dimensions FlexWorks One-Piece Polyethylene Sump FlexWorks Wide-Access Polyethylene Sump FlexWorks One-Piece Polyethylene Pan FlexWorks One-Piece Fiberglass Sump FlexWorks Wide-Access Fiberglass Sump Stabilizer Bar Kit Dresser / Wayne in. cm 350, 357, 358, 360, 370 Series 15" x 25-7⁄8" 30 x 66 DS-1123F DSW-1123F DP-1123F DSF-1123F SBK-1100J Vista 380 Series (387, 389) 20" x 35" 51 x 89 DS-1229 DSW-1229 DSF-1229 SBK-1200J Vista 590 Series (590, 595) 20" x 48" 51 x 122 DS-1242 DSW-1242 DSF-1242 SBK-1200J Vista 390 Series (395, 399) 20" x 48" 51 x 122 DS-1242 DSW-1242 DSF-1242 SBK-1200J Vista 490 Series 20" x 48" 51 x 122 DS-1242 DSW-1242 DSF-1242 SBK-1200J DL390, 395, 399 Series 20" x 48" 51 x 122 DS-1242 DSW-1242 DSF-1242 SBK-1200J HS1 Satellite / 287 Series 20" x 35" 51 x 89 DS-1229 DSW-1229 DSF-1229 SBK-1200J Ovation 19-1⁄2" x 43-1⁄2" 50 x 110 DS-1543A** DSW-1543 DSW-1543C FDS-4319* DSF-1543 DSF-1543C SBK-1500 Select 19-3⁄8" x 32-5⁄16" 49 x 82 DS-1928 SBK-1500A Global Century 19-3⁄8" x 32-5⁄16" 49 x 82 DS-1928 SBK-1500A Reliance 19-3⁄8" x 32-5⁄16" 49 x 82 DS-1928 SBK-1500A HS4 / HS3 / Vista 19-3⁄8" x 32-5⁄16" 49 x 82 DS-1630 DSW-1630*** DP-1630 DSF-1630*** SBK-1600 Narrow Frame Helix (2000, 4000) 20" x 33" 51 x 84 DS-1630 SBK-1600 Wide Frame Helix (5000) 26" x 44" 51 x 112 DS-1741 SBK-1700 * For FDS-4319 Model use Stabilizer Bar SBO-0250 ** For DS-1543A Model use Stabilizer Bar SBK-1500A; for DSF/DSW-1543 Models use Stabilizer Bar SBK-1500 *** For DS-1928 Model use Stabilizer Bar SBK-1500A; for DSF/DSW-1630 Models use Stabilizer Bar SBK-1600
Tokheim
Dispenser Manufacturer & Model Dispenser Footprint Dimensions FlexWorks One-Piece Polyethylene Sump FlexWorks Wide-Access Polyethylene Sump FlexWorks One-Piece Polyethylene Pan FlexWorks One-Piece Fiberglass Sump FlexWorks Wide-Access Fiberglass Sump Stabilizer Bar Kit Tokheim in. cm 1200, 1248, 1250 Series 17-1/4" x 25" 44 x 64 DS-1120 DSW-1120 DSF-1120 SBK-1100J 330B, 333B Series 17-1/4" x 44" 44 x 112 DS-1642 DSW-1642 DSF-1642 SBK-1600
